MakerX N6354 N6370 N63100 Brushless Motor

Notify me when this product is available:

Size

N6354:

KV:190

Power: 2450W

Motor Wire: 130MM 12AWG silicone wire

Hall wire:  PH2.0  6P (With 10K NTC)

Shaft :  8mm with keyway

Size: 63MM in diameter, 54MM in length

Weight: 550g

Default bullet plug: 4MM (Not welded. Please note if welding is needed)



N6374:

KV:190

Power: 3500W

Motor Wire: 130MM 12AWG silicone wire

Hall wire:  PH2.0  6P (With 10K NTC)

Shaft :  8mm with keyway

Size: 63MM in diameter, 74MM in length

Weight: 875g

Default bullet plug: 5.5MM (Not welded. Please note if welding is needed)

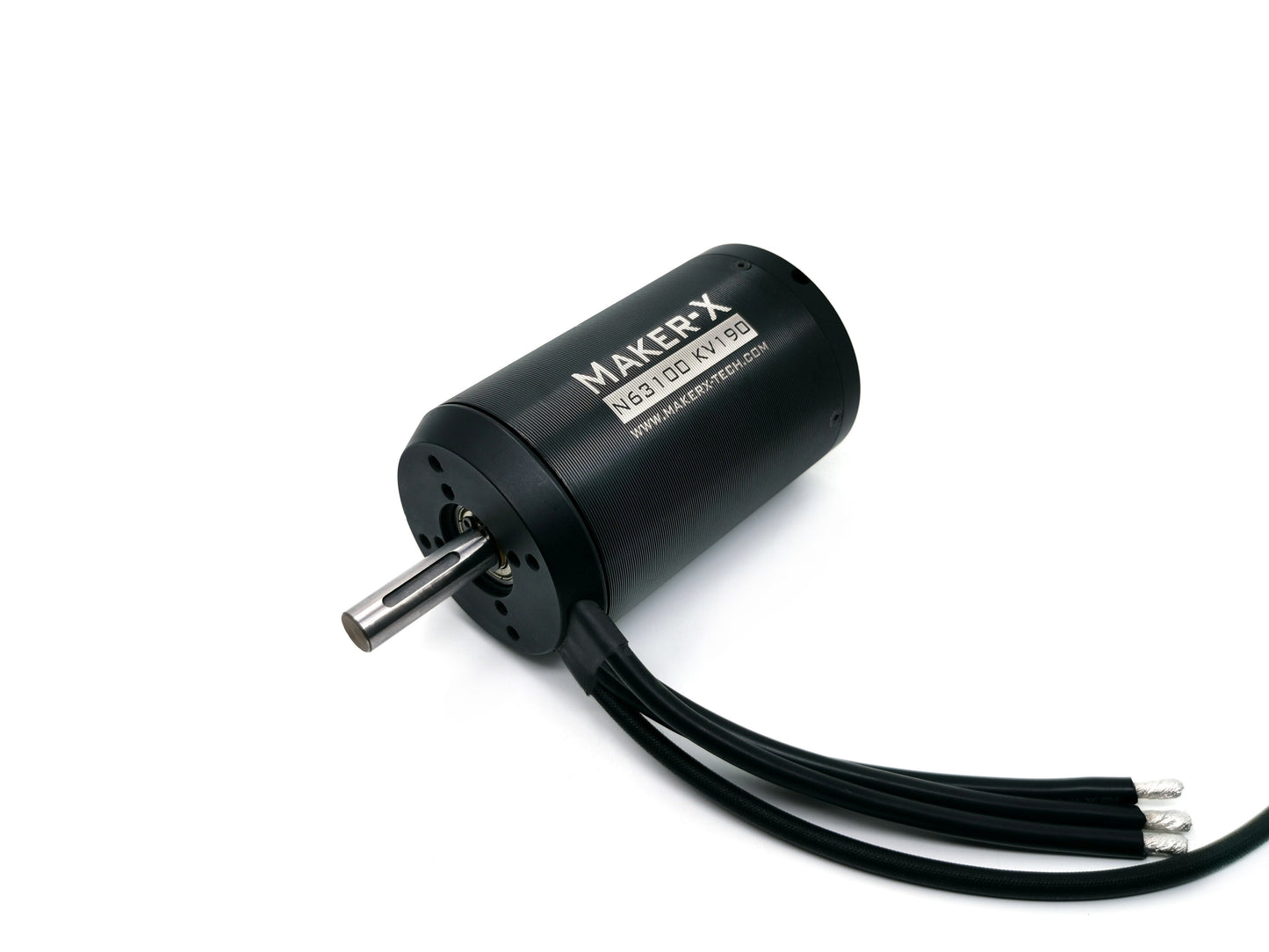

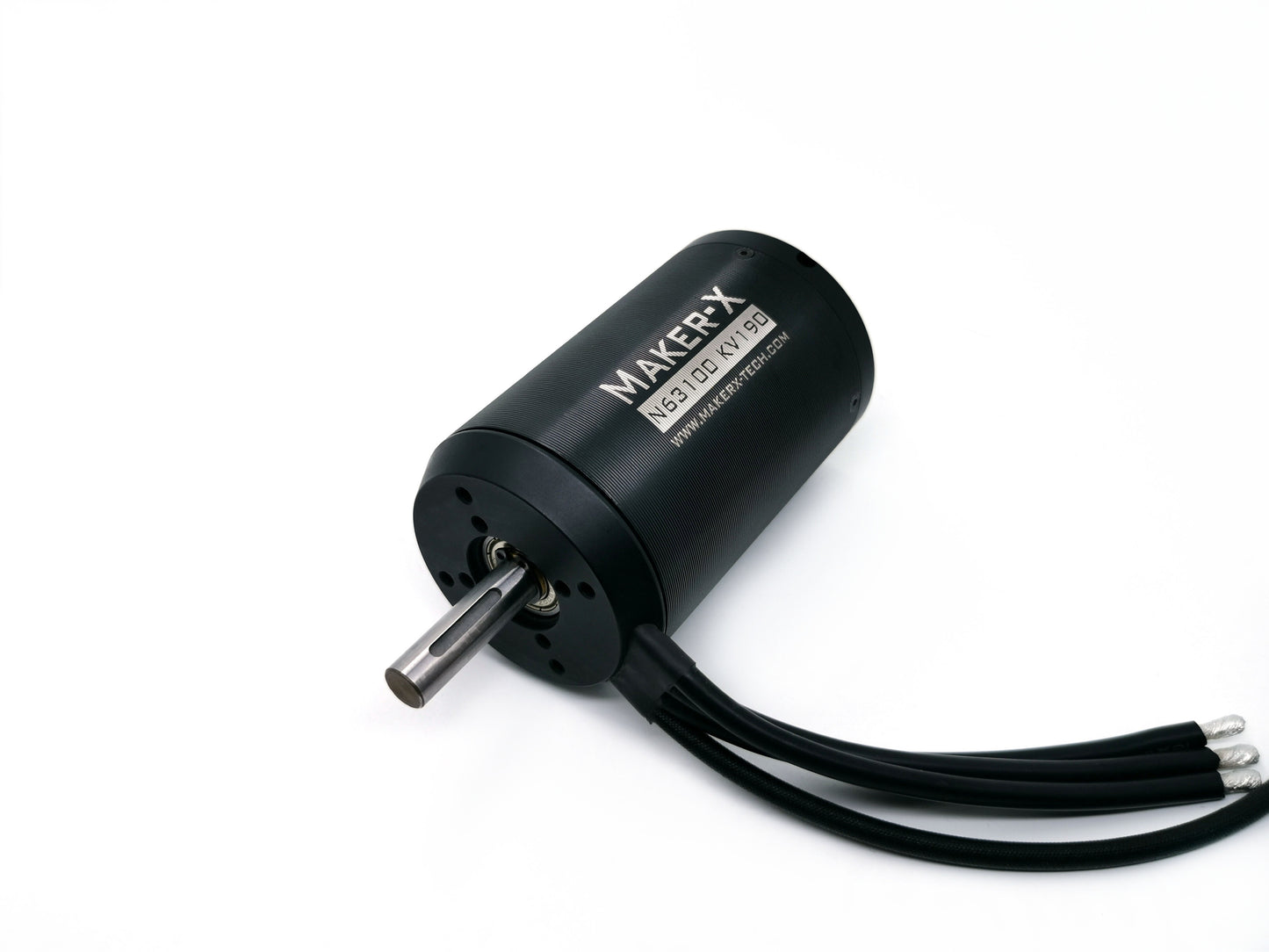

N63100:

KV:190

Power: 5000W

Motor Wire: 130MM 10AWG silicone wire

Hall wire:  PH2.0  6P (With 10K NTC)

Shaft :  10mm with keyway

Size: 63MM in diameter, 100MM in length

Weight: 1400g

Default bullet plug: 6MM (Not welded. Please note if welding is needed)

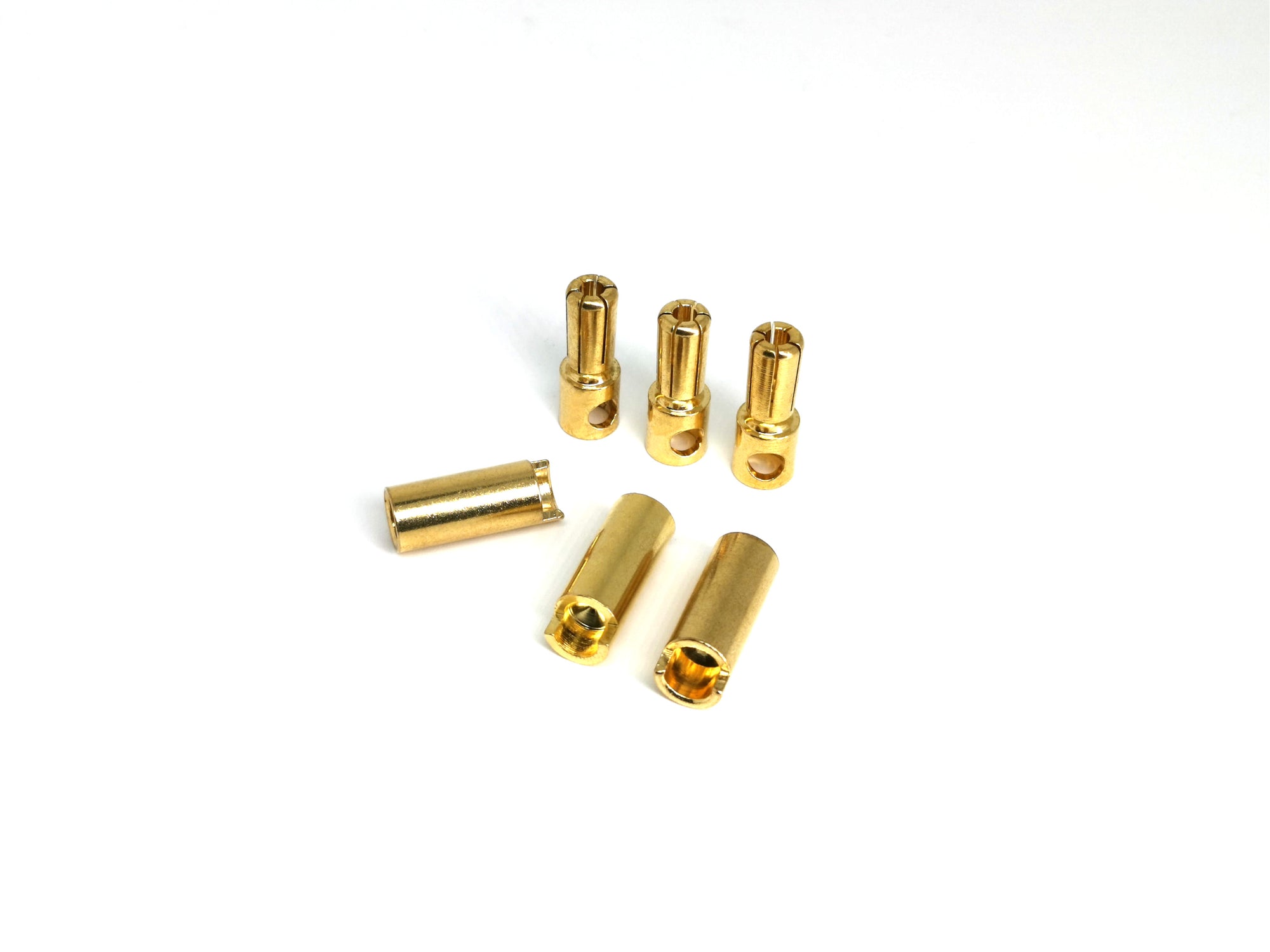

The bullet plug can be welded as required. Please make a note!

Bullet plug type :  4MM  5.5MM  6MM
